Popular Newsprint Paper Machine With Different Capacity

Popular Newsprint Paper Machine With Different Capacity

short description:

Newsprint Paper Machine is used for making Newsprint paper.The output paper basis weight is 42-55 g/m² and brightness standard 45-55%,for news printing. News paper is made of Mechanical wood pulp or waste newspaper. The quality of output News paper by our paper machine is loose,light and has good elasticity; the ink absorption performance is good, which ensures that the ink can be well fixed on the paper. After calendering, both sides of Newspaper are smooth and lint-free, so that the imprints on both sides are clear; Paper has a certain mechanical strength,good opaque performance; it is suitable for high-speed rotary printing machine.


Product Detail

Product Tags

ico (2)

Main Technical Parameter

1.Raw material  Mechanical wood pulp (or other chemical pulp),Waste newspaper
2.Output paper  News print paper
3.Output paper weight  42-55 g/m2
4.Output paper width  1800-4800mm
5.Wire width  2300-5400 mm
6.Headbox lip width  2150-5250mm
7.Capacity  10-150 Tons Per Day
8. Working speed 80-500m/min
9. Design speed 100-550m/min
10.Rail gauge  2800-6000 mm
11.Drive way  Alternating current frequency conversion adjustable speed, sectional drive
12.Layout  Single layer,Left or right hand machine
ico (2)

Process Technical Condition

Mechanical wood pulp or Waste newspaper → Stock preparation system→Wire part→Press part→Dryer group→Calendering part →Paper scanner→Reeling part→Slitting&Rewinding part

ico (2)

Process Technical Condition

Requirements for Water, electricity, steam, compressed air and lubrication:

1.Fresh water and recycled use water condition:
Fresh water condition:clean,no color,low sand
Fresh water pressure used for boiler and cleaning system:3Mpa、2Mpa、0.4Mpa(3 kinds) PH value:6~8
Reuse water condition:
COD≦600 BOD≦240 SS≦80 ℃20-38 PH6-8

2. Power supply parameter
Voltage:380/220V±10%
Controlling system voltage:220/24V
Frequency:50HZ±2

3.Working steam pressure for dryer ≦0.5Mpa

4. Compressed air
● Air source pressure:0.6~0.7Mpa
● Working pressure:≤0.5Mpa
● Requirements: filtering、degreasing、dewatering、dry
Air supply temperature:≤35℃

ico (2)

Paper making flowchart(waste paper or wood pulp board as raw material)

Paper making flowchart
75I49tcV4s0

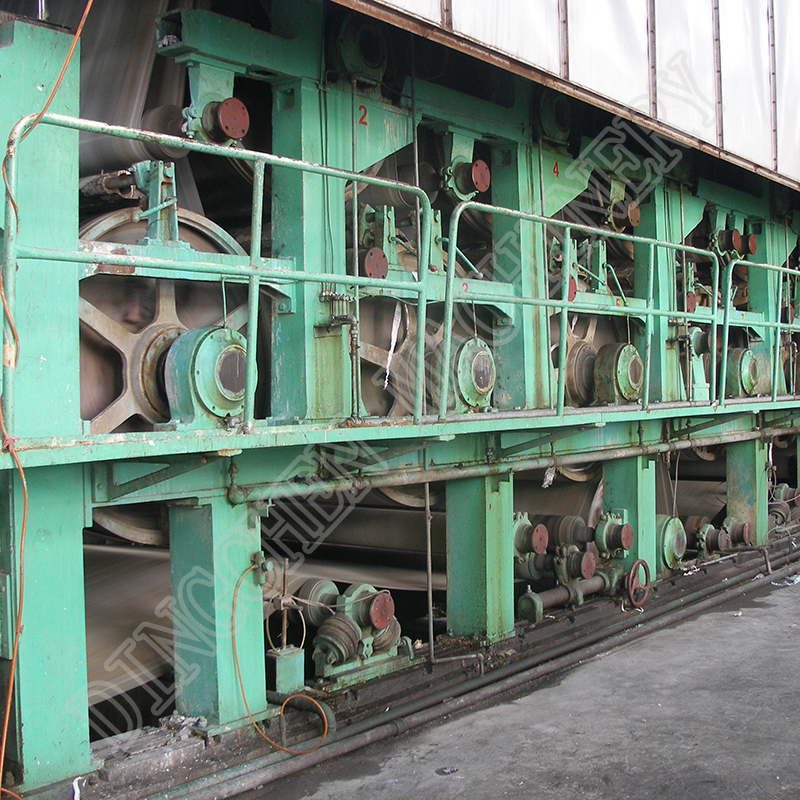

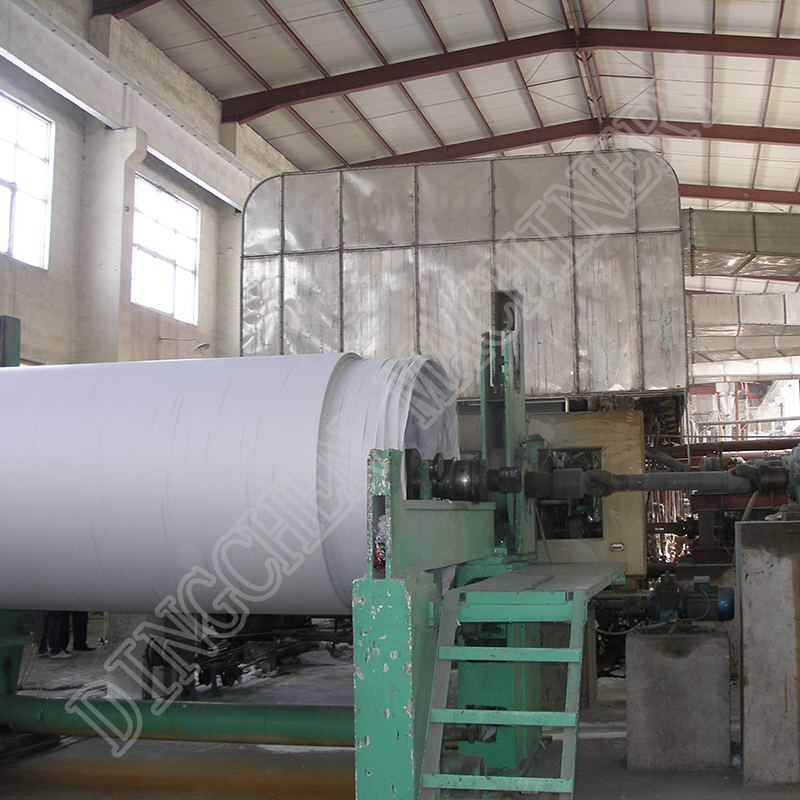

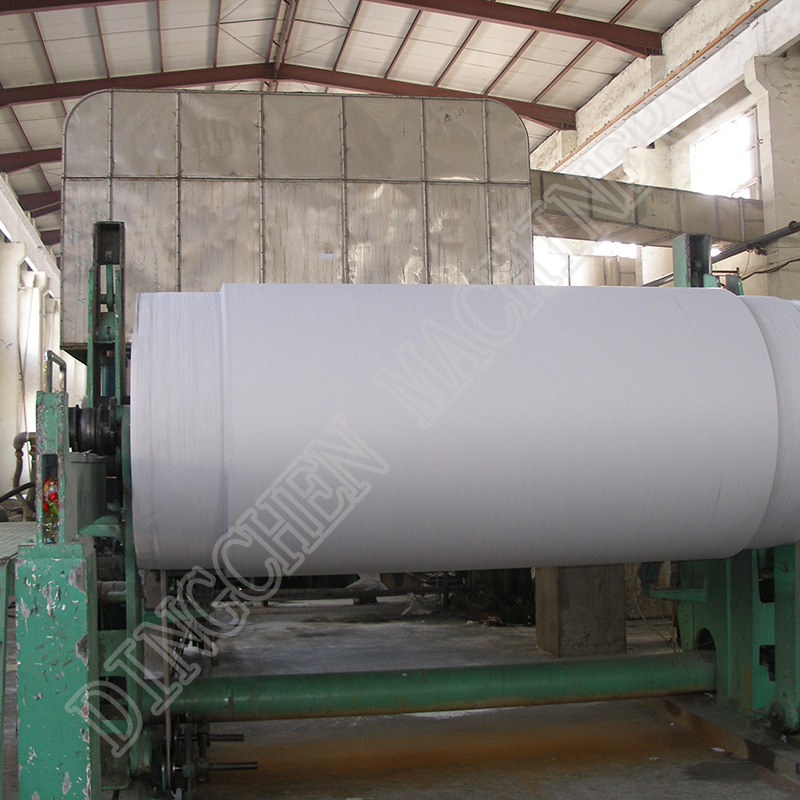

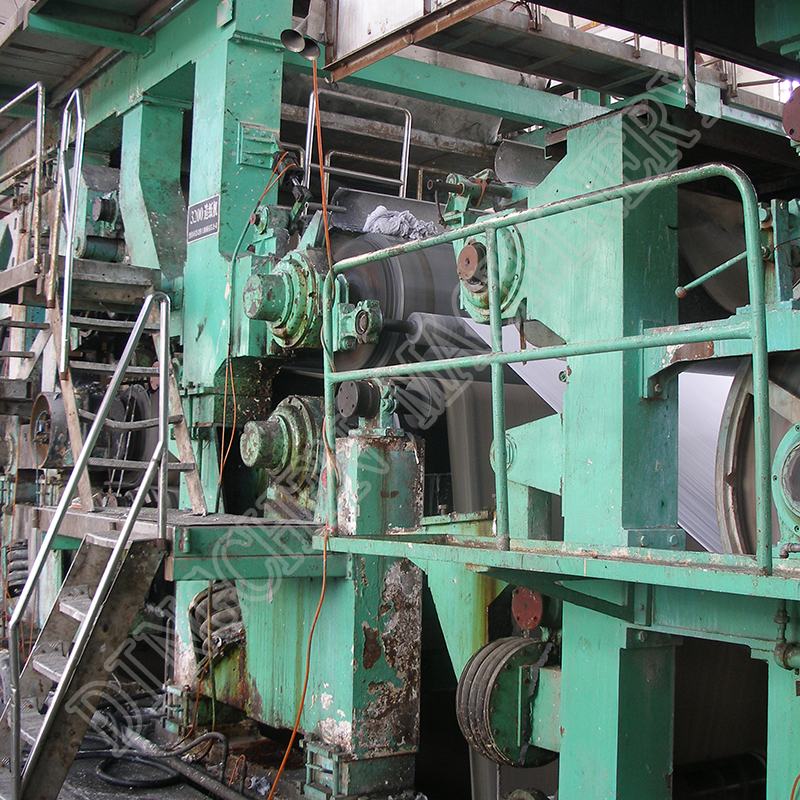

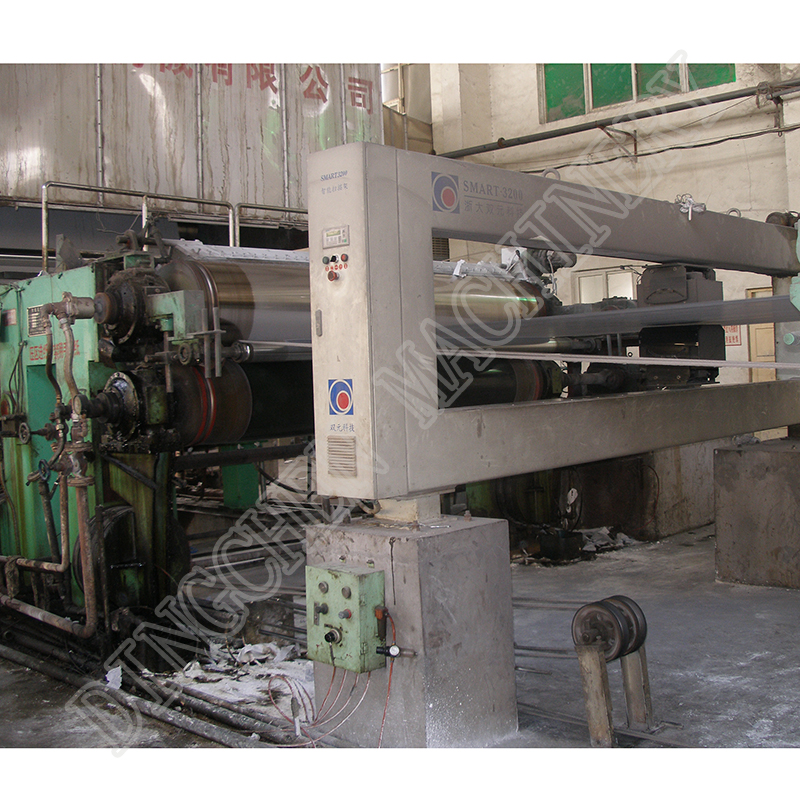

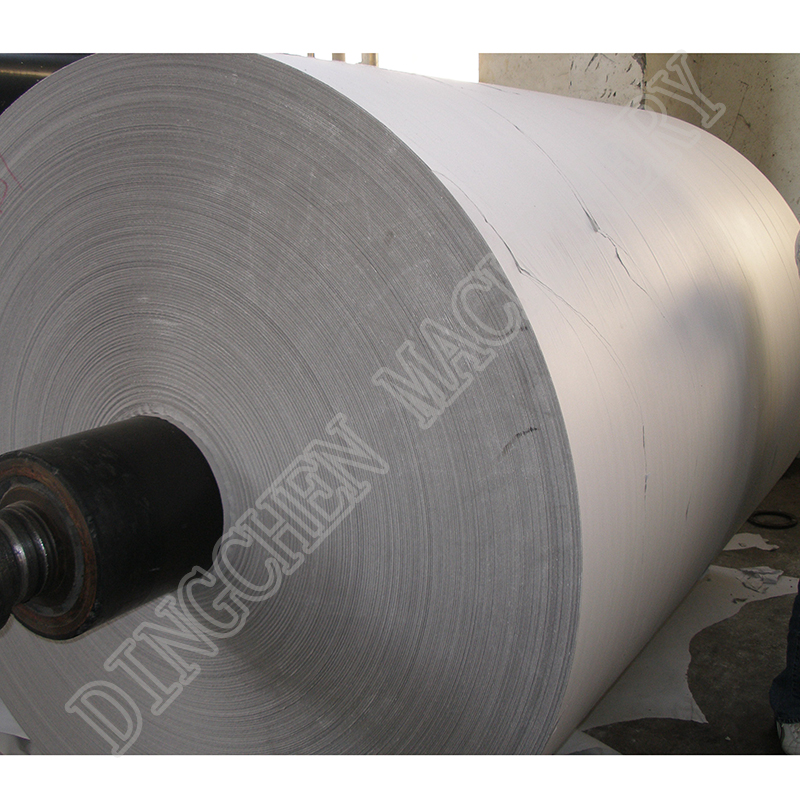

Product Pictures
