2800/3000/3500 high speed toilet paper rewinding machine

2800/3000/3500 high speed toilet paper rewinding machine

short description:

Product Detail

Product Tags

ico (2)

Product Features

1.Man-machine interface operation, the operation is more simple and convenient.
2.The automatic trimming, glue spraying and sealing are completed simultaneously at one time. The device replaces the traditional water line trimming and realizes the foreign popular trimming and tail sticking technology. The finished product has a paper tail of 10-18mm, which is convenient to use, and reduces the loss of paper tail during the production of ordinary rewinder, so as to reduce the cost of finished products.
3.The whole machine adopts all steel plate structure to ensure the stability of the equipment during high-speed operation, so as to achieve the highest speed and production capacity in the current market.
4.It adopts independent frequency conversion return for each layer, and the layer number control can be changed at any time. It can be changed by using the program without disassembly and assembly.
5.The punching knife is controlled by separate frequency conversion, and the punching spacing and clarity can be controlled at any time. The host adopts full frequency conversion control, which makes the speed higher and more stable.
6.High precision spiral soft knife, 4-knife drilling noise is lower, the drilling is clearer, and the independent frequency conversion adjustment range is larger.
7.Using the front and rear inching switch to pull the base paper, the operation is simpler and safer.

ico (2)

Technical Parameter

Model 2800/3000/3500
Paper width 2800mm/3000mm/3500mm
Base diameter 1200mm(please specify)
Inner diameter of finished product core 32-75mm(please specify)
Product diameter 60mm-200mm
Paper backing 1-4layer, general chain feed or continuously variable transmission feed paper
Hole pitch 4 perforating blades, 90-160mm
Control system PLC control, variable frequency speed control, touch screen operation
Parameters setting Touch multi screen man-machine interface operating system
Pneumatic system 3 air compressors,minimum pressure 5kg/cm2 Pa(offered by customers)
Production speed 300-500m/min
Power frequency control 5.5-15kw
Paper back frame drive Independent variable frequency drive
Embossing Single embossing, double embossing(steel roller to wool roller,steel roller,optional)
Bottom embossing roller Wool roller, rubber roller
Blank holder Steel to steel structure
Dimension of machine 6200mm-8500mm*3200mm-4300mm*3500mm
Machine weight 3800kg-9000kg
ico (2)

The Process Flow

tissue paper machine

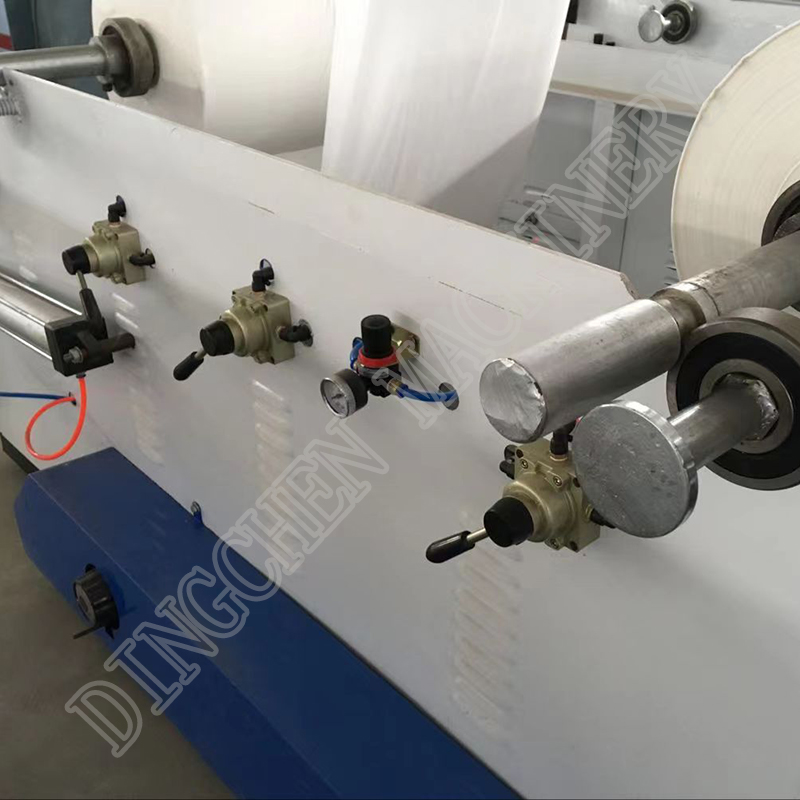

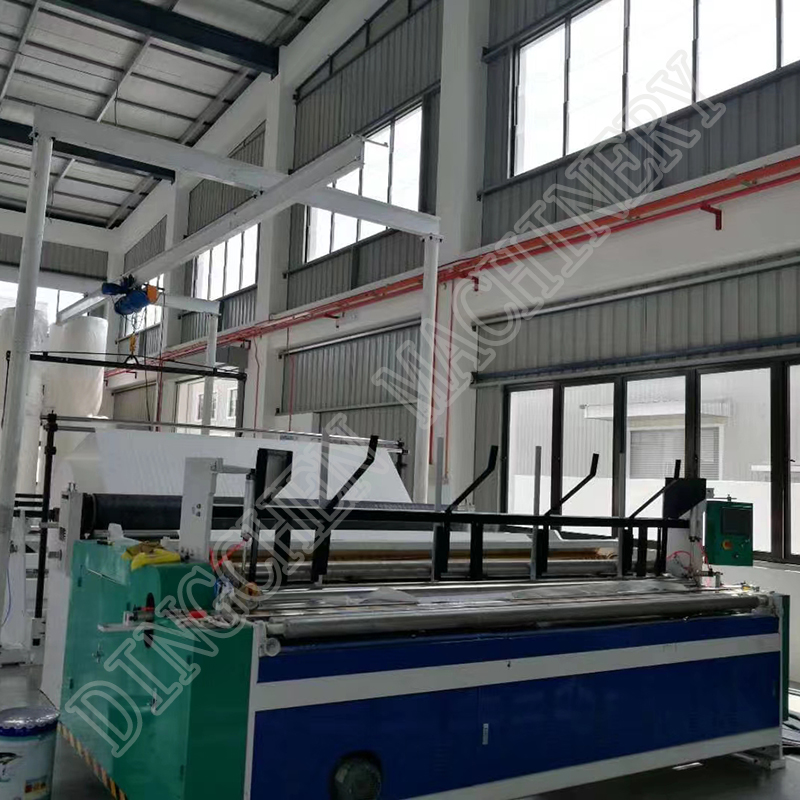

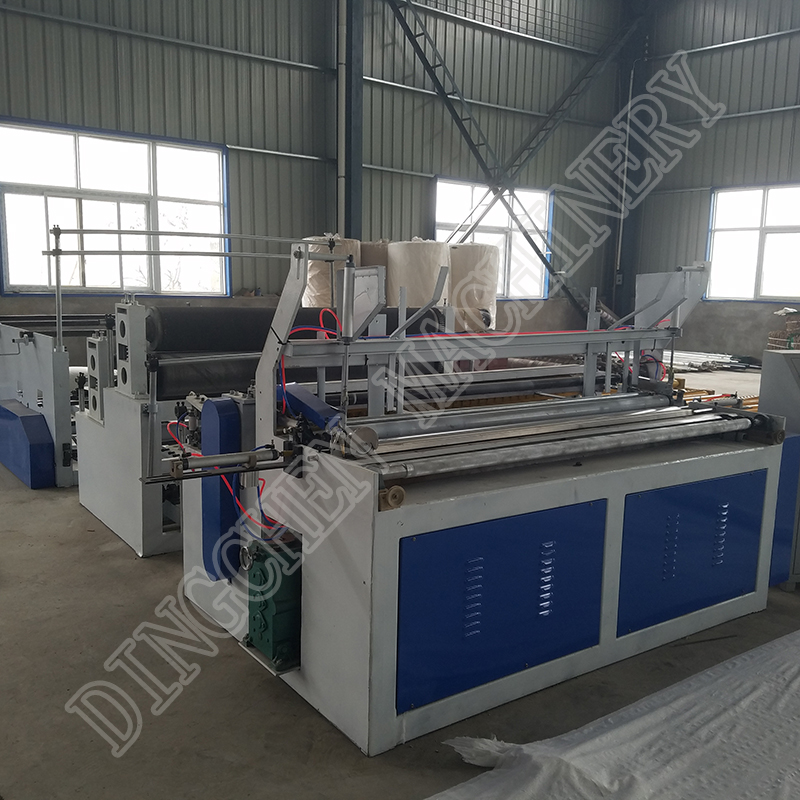

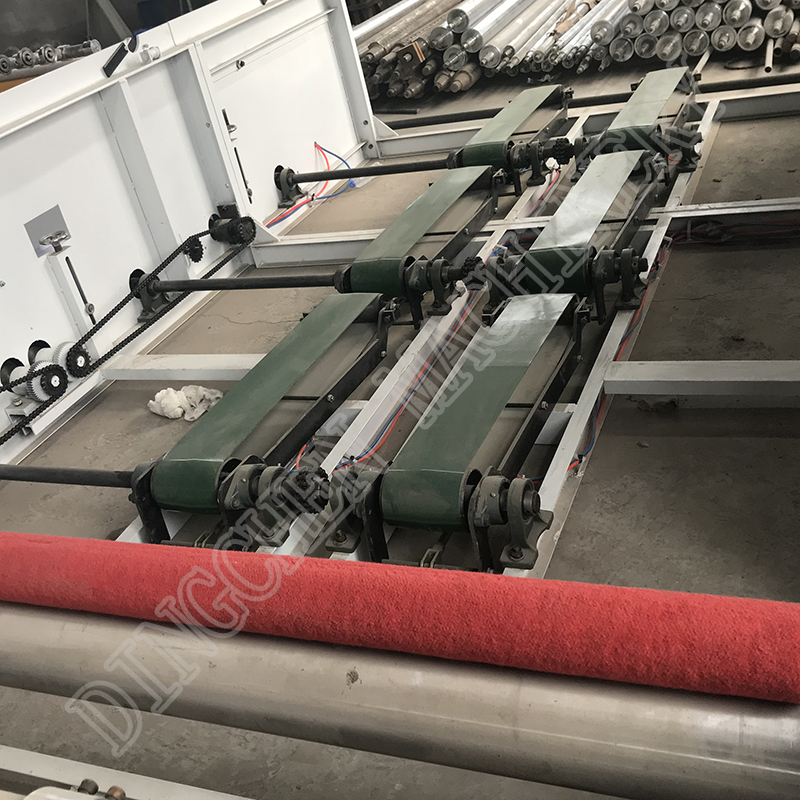

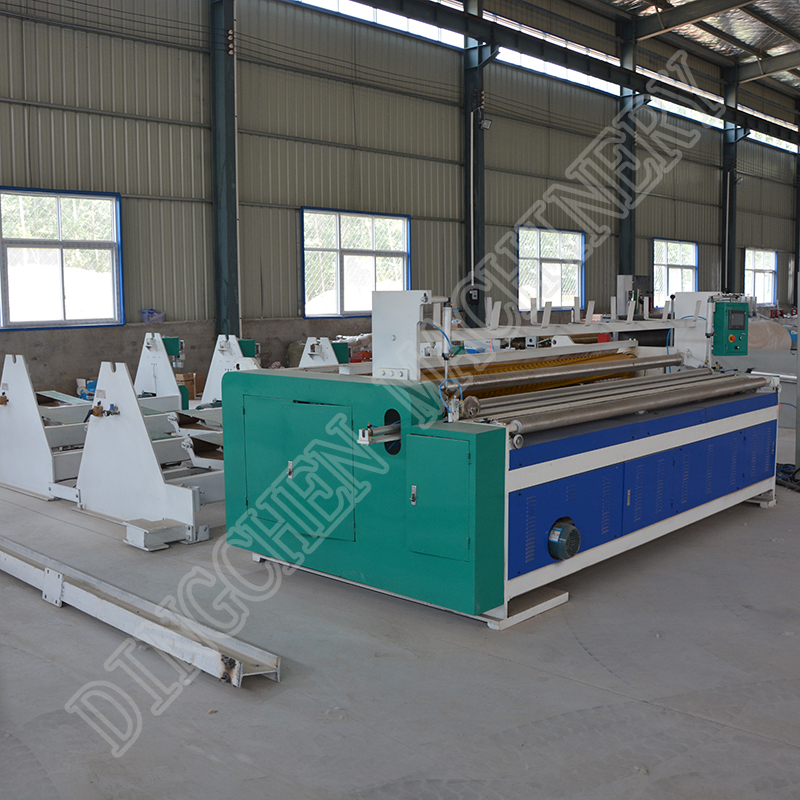

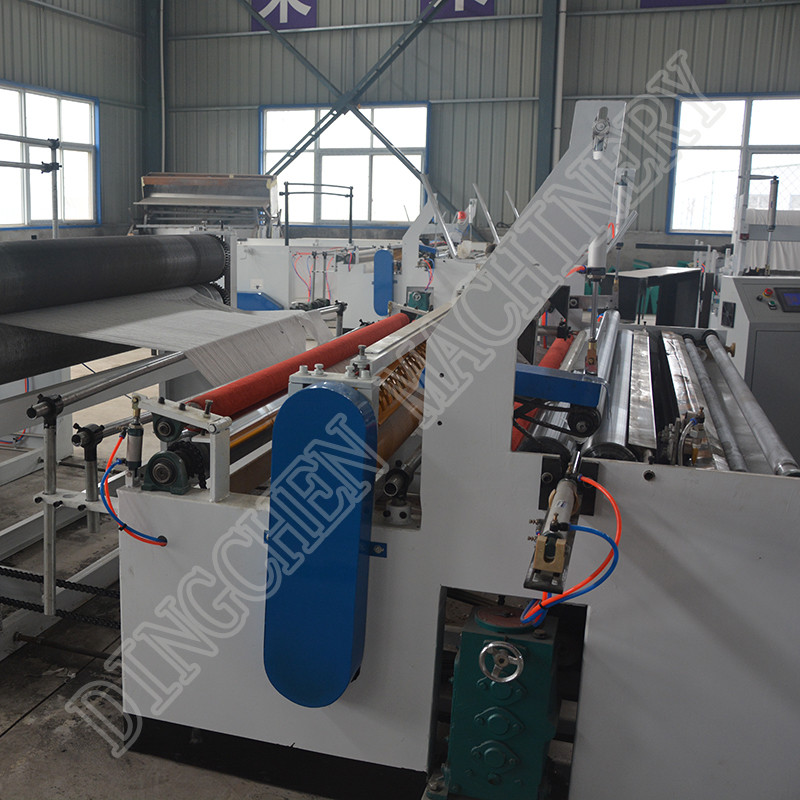

Product Pictures
