Waste Cardboard Recycle Machine

Waste Cardboard Recycle Machine

short description:

Waste Cardboard Recycle Machine uses waste cardboard(OCC) as raw material to produce 80-350 g/m²Corrugated paper&Fluting paper. It adopts traditional Cylinder Mould to starch and form paper, mature technology, stable operation, simple structure and convenient operation. The waste cardboard recycle paper mill project transfer waste to new resource,has small investment, good return-profit, Green,Environment friendly. And carton packing paper product have huge demand in raising online shopping packaging market. It is our company’s best-selling machine.

Product Detail

Product Tags

ico (2)

Main Technical Parameter

1.Raw material  Waste Cardboard,OCC
2.Output paper  Corrugated paper;Fluting paper,Craft packing paper
3.Output paper weight  80-350 g/m2
4.Output paper width  1200-4800mm
5.Wire width  1450-5300 mm
6.Capacity  5-200 Tons Per Day
7. Working speed 50-180m/min
8. Design speed 80-210m/min
9.Rail gauge  1800-5900 mm
10.Drive way  Alternating current frequency conversion adjustable speed, sectional drive
11.Layout  Left or right hand machine
ico (2)

Process Technical Condition

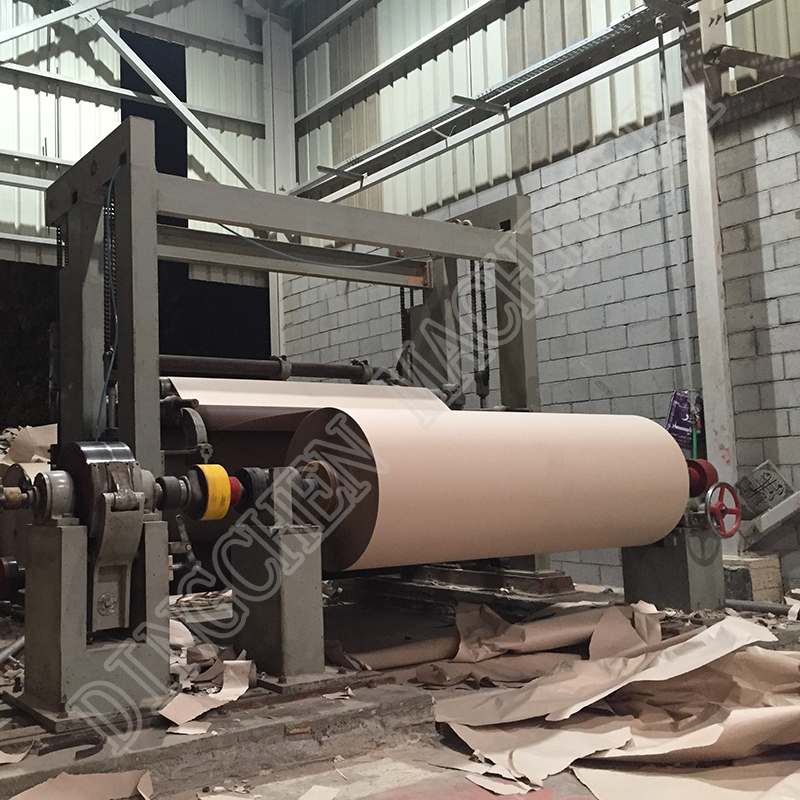

Waste cardboard →Stock preparation system→Cylinder mould part→Press part→Dryer part→Reeling part→Slitting&Rewinding part

ico (2)

Process Technical Condition

Requirements for Water, electricity, steam, compressed air and lubrication:

1.Fresh water and recycled use water condition:
Fresh water condition:clean,no color,low sand
Fresh water pressure used for boiler and cleaning system:3Mpa、2Mpa、0.4Mpa(3 kinds) PH value:6~8
Reuse water condition:
COD≦600 BOD≦240 SS≦80 ℃20-38 PH6-8

2. Power supply parameter
Controlling system voltage:220/24V

3.Working steam pressure for dryer ≦0.5Mpa

4. Compressed air
● Air source pressure:0.6~0.7Mpa
● Working pressure:≤0.5Mpa
● Requirements: filtering、degreasing、dewatering、dry
Air supply temperature:≤35℃

ico (2)

Feasibility Study

1.Raw material consumption: 1.2 tons waste paper for producing 1 ton paper
2.Boiler fuel consumption: Around 120 Nm3 natural gas for producing 1 ton paper
Around 138 liter diesel for making 1 ton paper
Around 200kg coal for making 1 ton paper
3.Power consumption: around 250 kwh for producing 1 ton paper
4.Water consumption: around 5 m3 fresh water for making 1 ton paper
5.Operating personal: 11workers/shift, 3 shifts/24hours

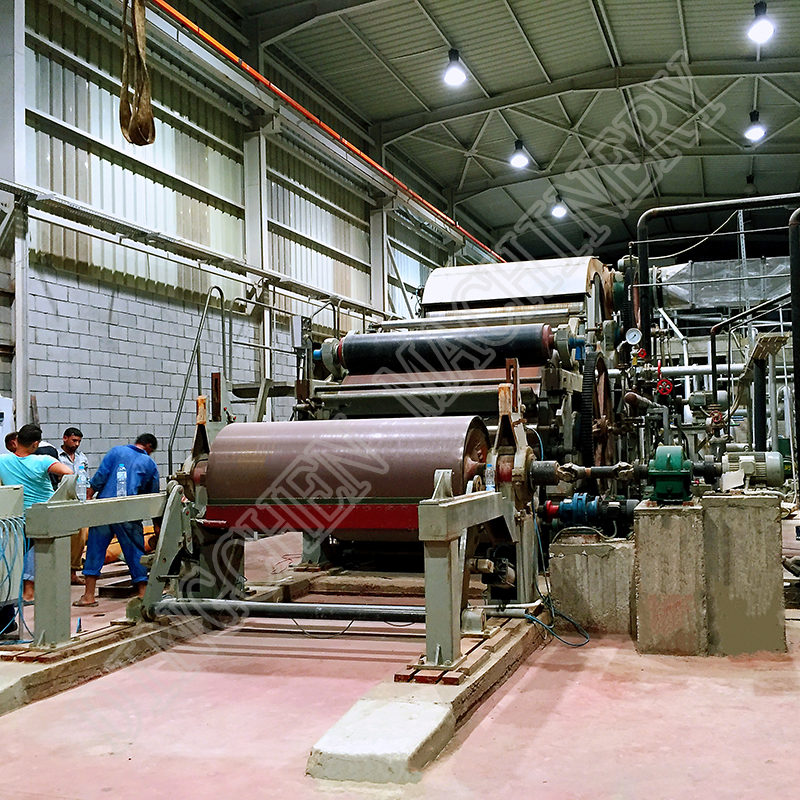

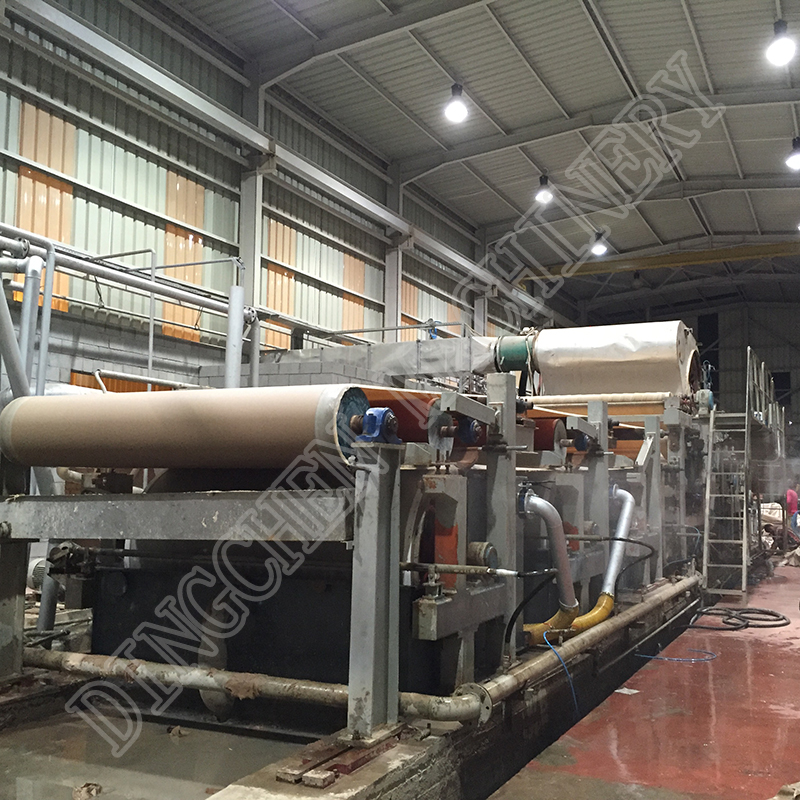

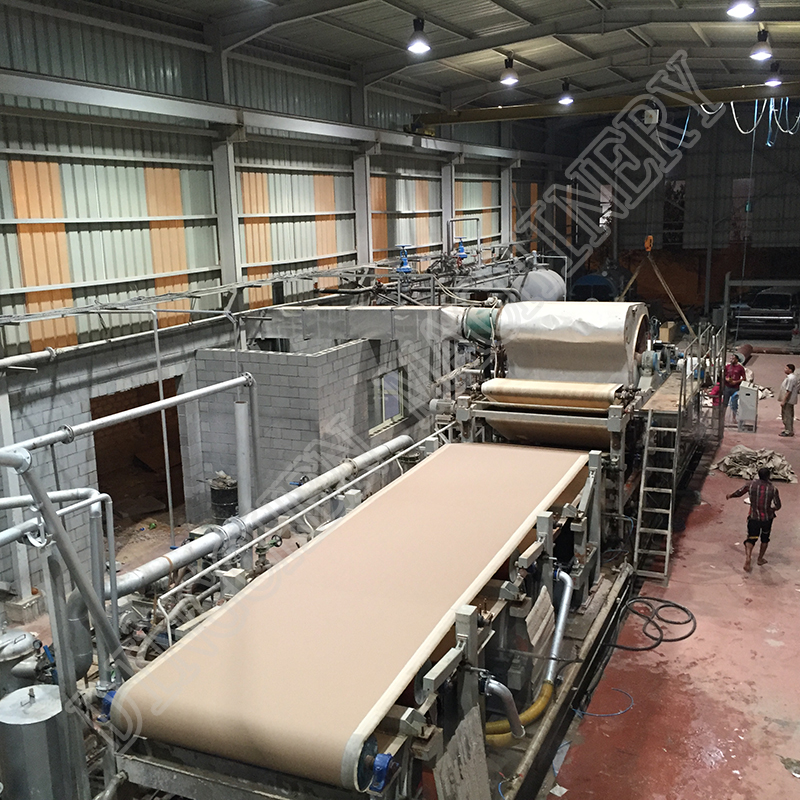

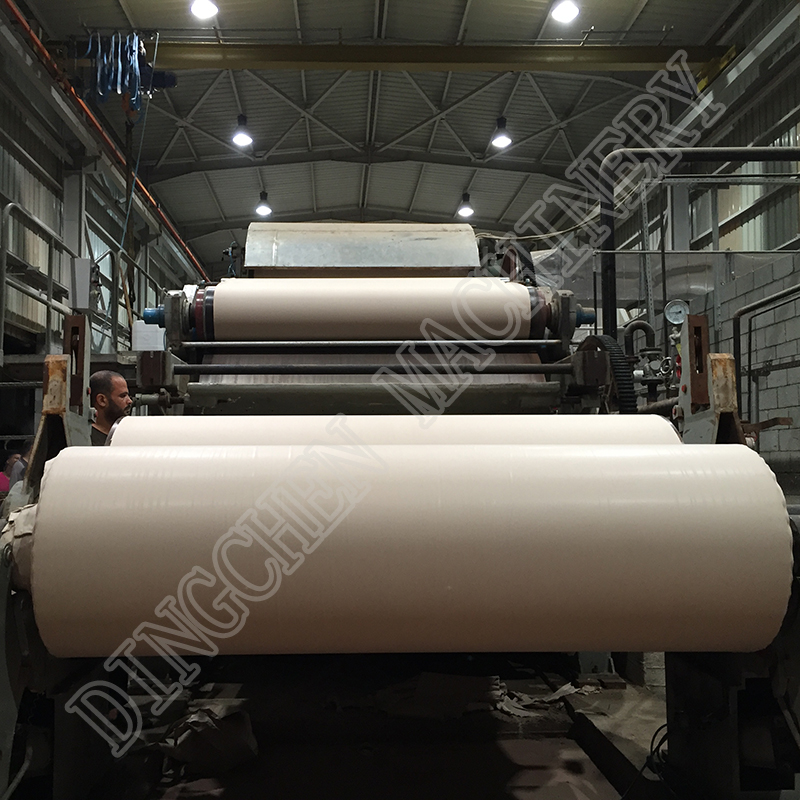

Product Pictures
